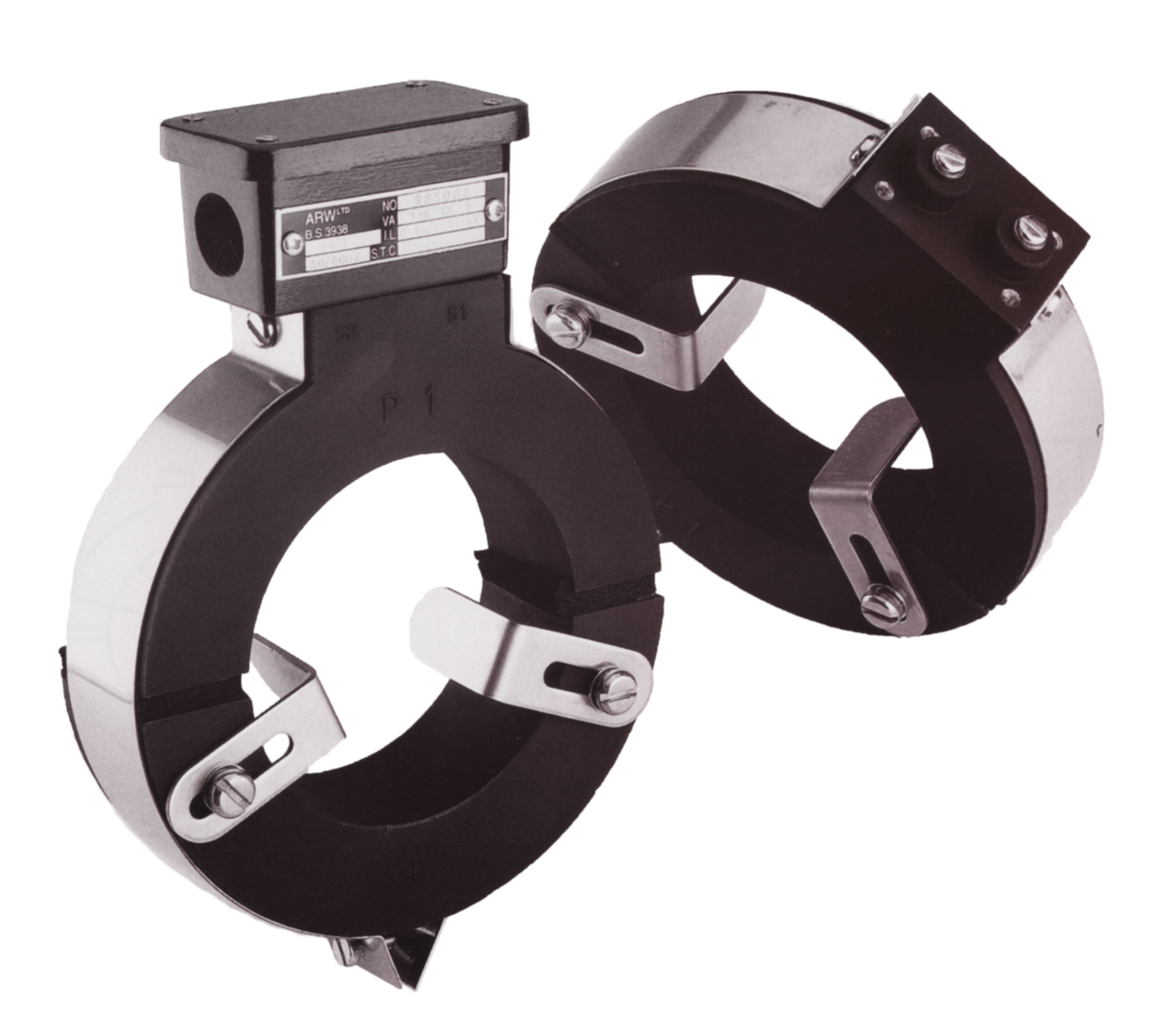

Resin-Cast Current Transformers

This range of CTs has been developed over a number of years for general metering applications. However, some mouldings have enough space to allow their use for protection depending on the ratings required.

The units are encased in a polyester resin and are for use on systems requiring 0.66/0.72kV insulation (Note: It may be possible to increase this to 3.6kV systems depending on the CT rating required).

Both types have a large number of mould tool sizes available and are terminated with M6 screws. On application, our designers can advise if your CT specification will fit within your moulding choice.

System Voltages Available: up to 720V.
